DXVT 35
LONG ENDURANCE
SURVEILLANCE VTOL UAV

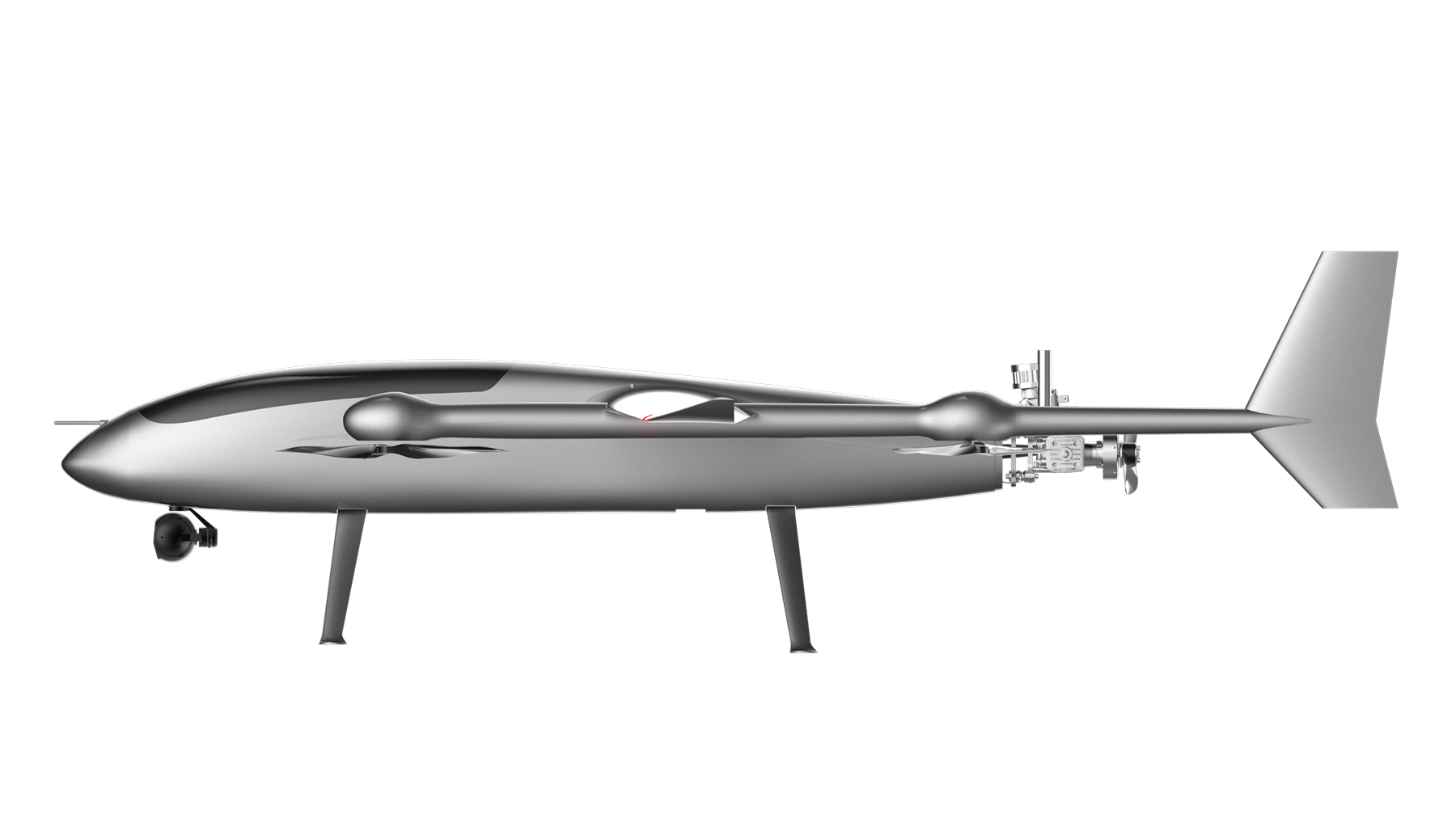

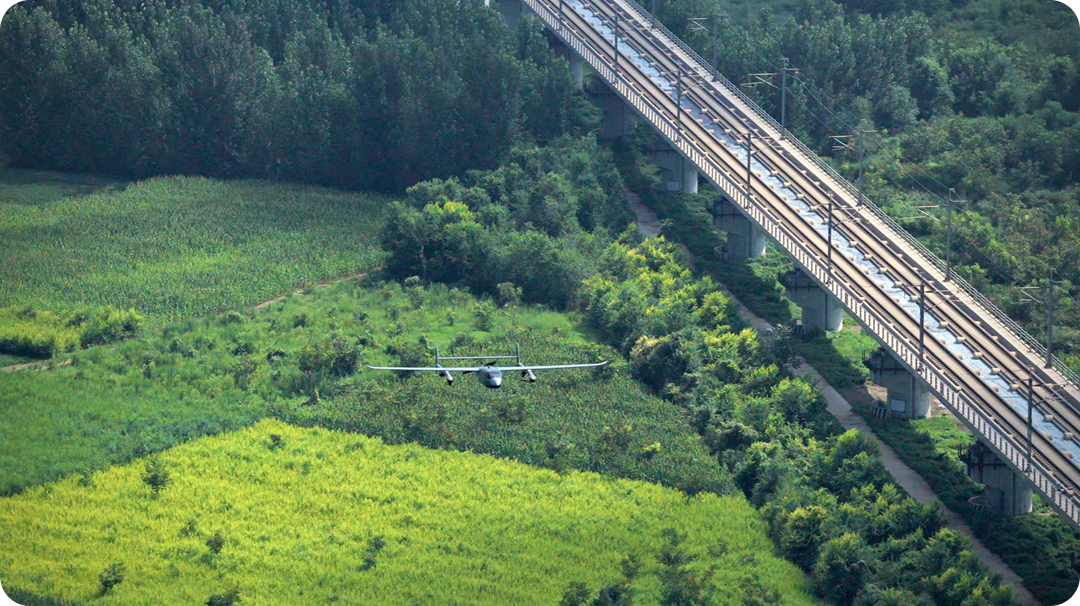

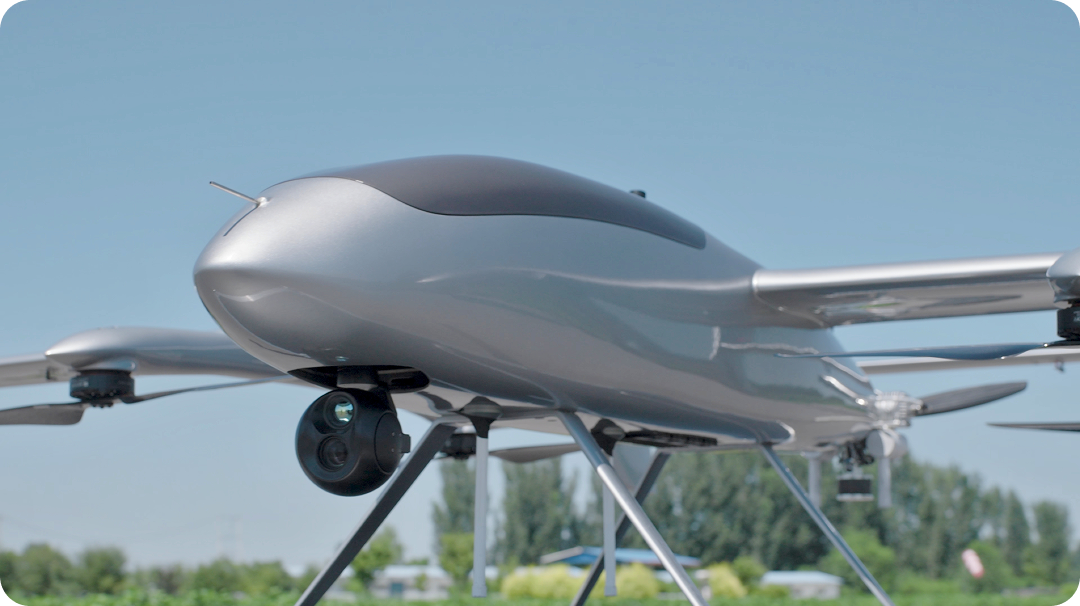

DXVT35 is a VTOL UAV with 3.9m wingspan, 35 kg MTOW, up to 10h endurance and a max range of 900 km. It has a 7 level wind resistance and supports 100km beyond-visual task operation capability. It’s integrated with SATCOM and high-definition EO/IR sensor can provides monitoring and inspection services for long-distance routes such as oil pipelines and highways, and offer on-site image services for disaster assessment.
Long-Distance
Unmanned Line Inspection System
Flight Performance
10h
Max. Endurance
900km
Max. Flight Range
35kg
Max. Take-off Weight
3.9m
Wingspan
90km/h
Cruising Speed
7level
Wind Resistance
Specification
Max.Endurance 10h
Cruising Speed 90km/h
Max.Flight Speed 120km/h
Flight Altitude ≤5000m
Wind Resistance Level 7
Take-off Mode Vertical
Landing Mode Vertical
Max.Take-off Weight 35kg
Payload Weight 2kg
Wingspan 3.9m

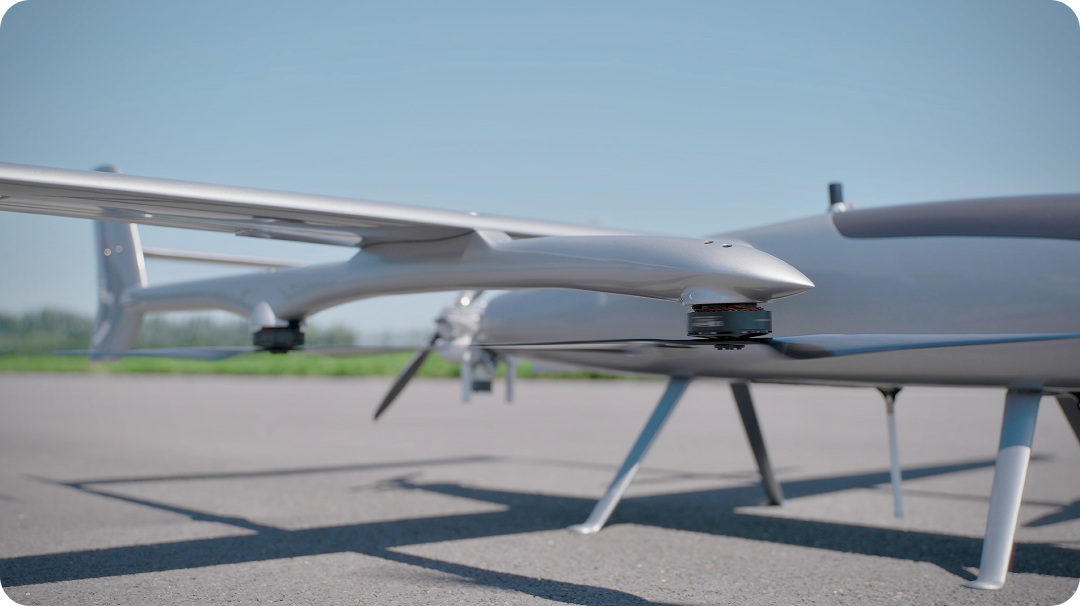

Power System Piston engine
Electric motor
Payloads
Visible Light
Optical Zoom20x
Digital Zoom7x
Infrared Imaging
Imaging Pixel640*512
Field Angle35mm
Laser Ranging
Ranging Accuracy±2m
Ranging Distance20-4000m
SATCOM SYSTEM
Operating Mode BDS
Reception Channels 14
Total Weight 200g

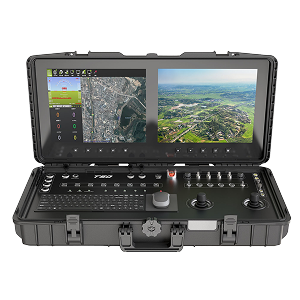

Ground control
