DXMR 25
LONG ENDURANCE
SURVEILLANCE MULTIROTOR UAV

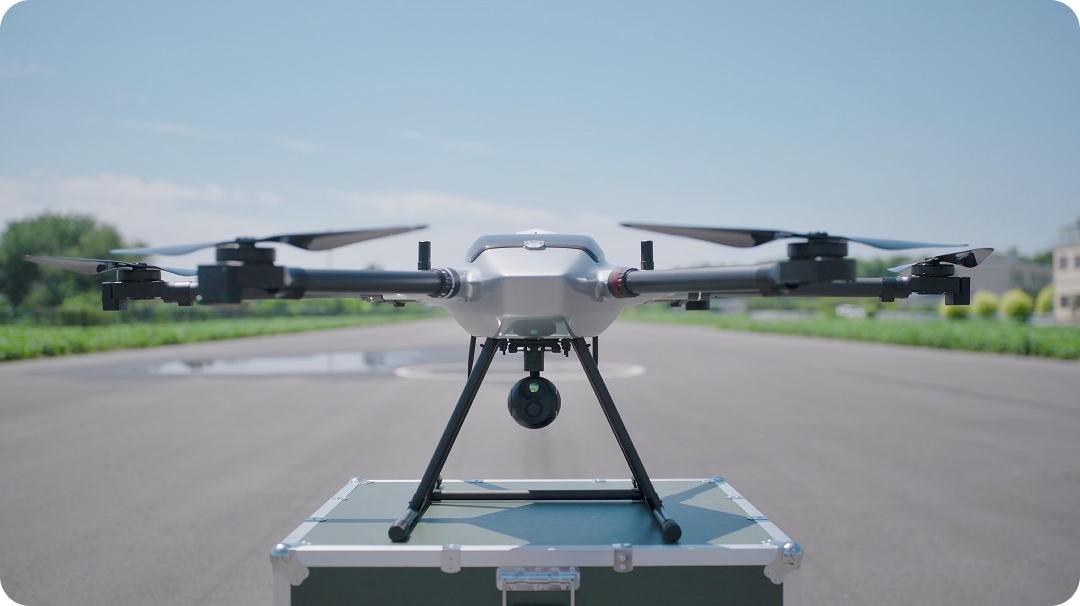

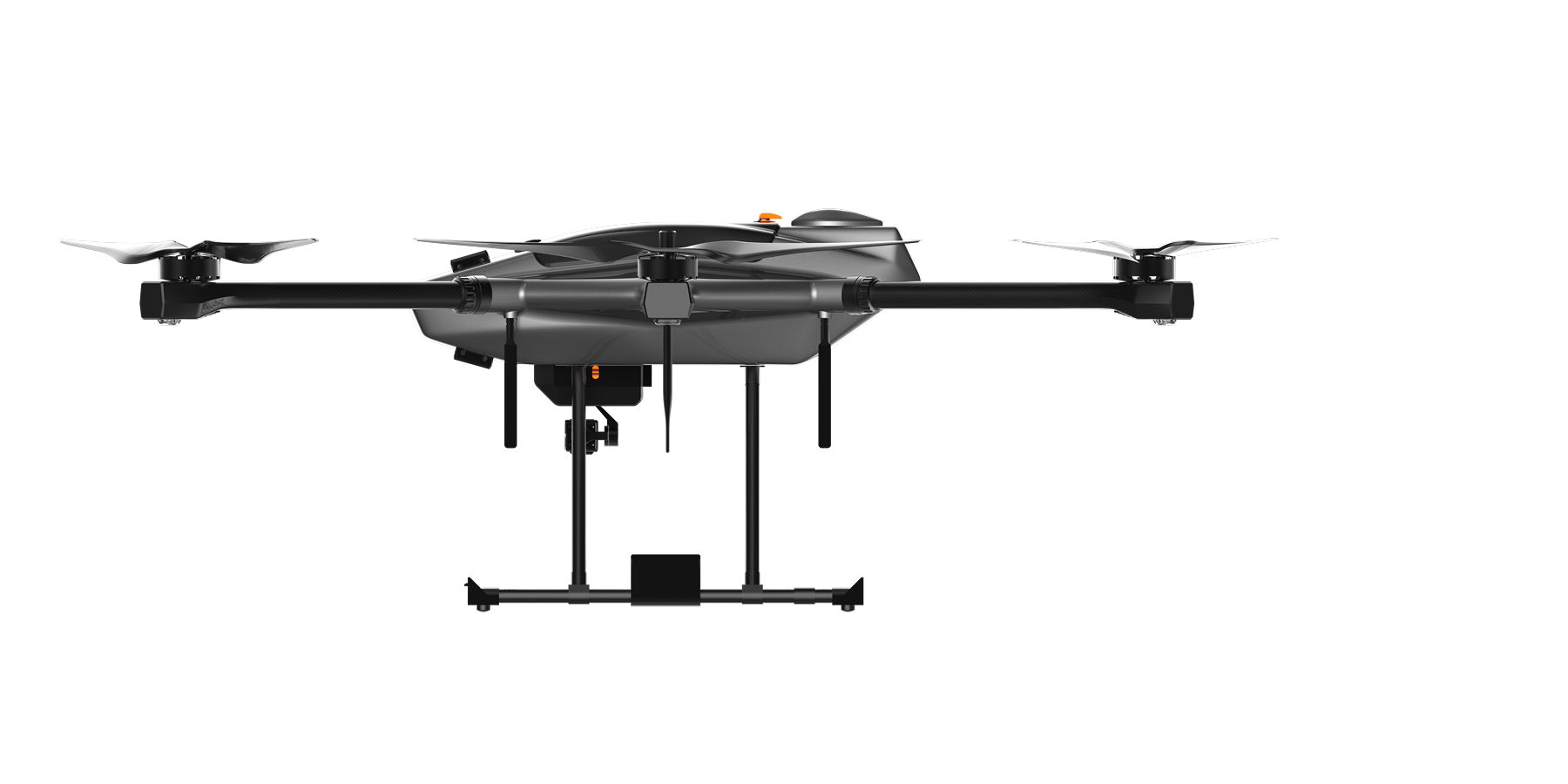

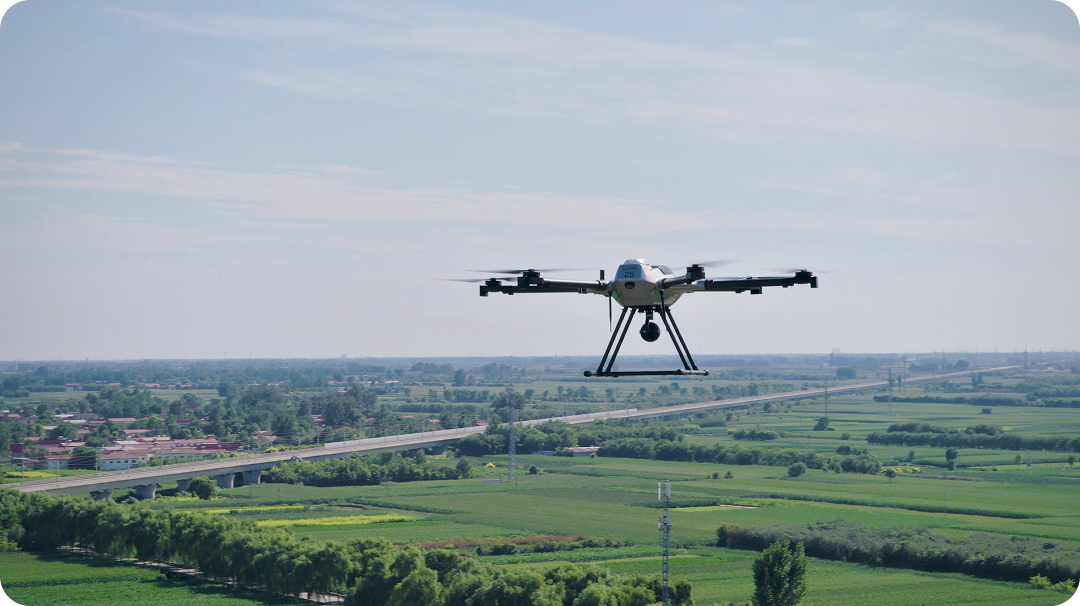

DXMR 25 medium-sized multirotor UAV with 1.6m rotor spacing, up to 2h endurance, and flight range of up to 60 km. It features precise VTOL, auto obstacle avoidance capabilities, and it's highly customizable. Equipped with high-definition EO/IR sensors, it’s suitable for conducting regular and fixed-route detailed inspections in railway scenarios. Integrated SATCOM system ensures continuous connection over terrains.
Long-Endurance
Unmanned Railway Inspection System
Flight Performance
2h
Max. Endurance
80km
Max. Flight Range
25kg
Max. Take-off Weight
1.6m
Wingspan
40km/h
Cruising Speed
7level
Wind Resistance
Specification
Max.Endurance 2h
Cruising Speed 40km/h
Max.Flight Speed 50km/h
Flight Altitude ≤4000m
Wind Resistance Level 7
Take-off Mode Vertical
Landing Mode Vertical
Max.Take-off Weight 25kg
Payload Weight 3kg
Wingspan 1.6m
Power System Electric motor

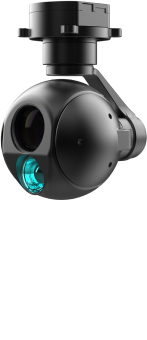

Payloads

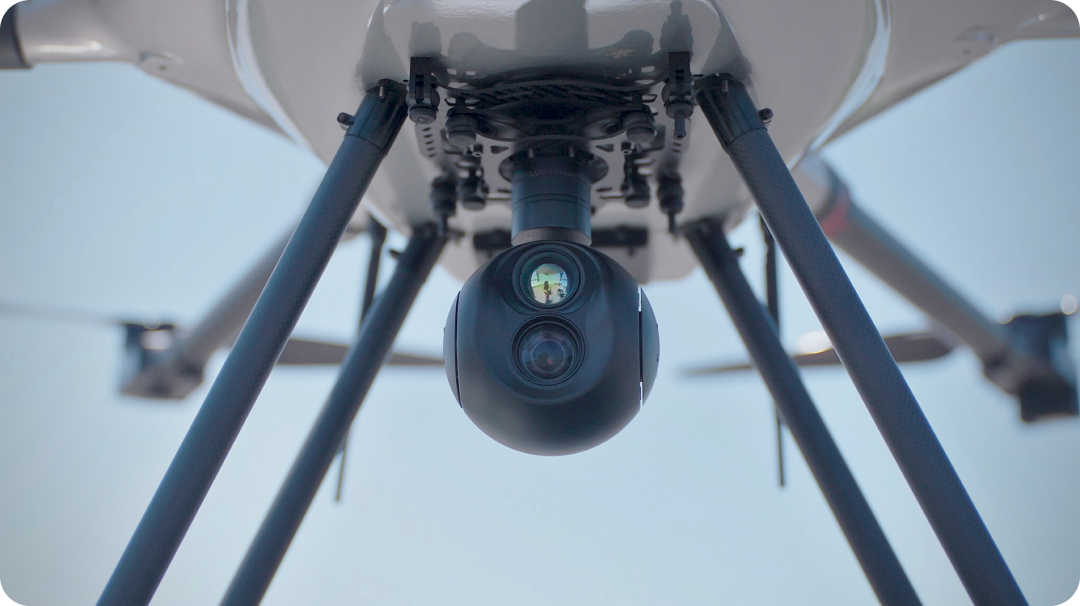

Visible Light
Optical Zoom20x
Digital Zoom7x
Infrared Imaging
Imaging Pixel640*512
Field Angle35mm
Laser Ranging
Ranging Accuracy±2m
Ranging Distance20-4000m
SATCOM SYSTEM
Operating Mode BDS
Reception Channels 14
Total Weight 200g

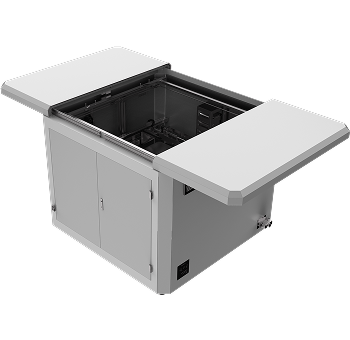

DX DOCK
